Twenty-five were built. Eight survive. One still moves. In the autumn of 1941, the American Locomotive Company completed a machine that redefined what was possible in steam railroad engineering — a 600-ton, 133-foot articulated giant that remains, to this day, the largest operational steam locomotive on earth. This is its story.
Words 2,093 | Read Time 9 min | Enjoy
Origins
Born of War and Mountains
In the autumn of 1941, as the world edged toward the most destructive conflict in human history, the American Locomotive Company rolled out of its Schenectady, New York, shops a machine unlike anything that had come before it — or, for that matter, anything that has come since. The Union Pacific Big Boy was not merely a locomotive. It was an act of engineering ambition, a direct response to the demands of geography and war, and an iron testament to the proposition that American industry could build its way over any obstacle.
The genesis of the Big Boy lay in the rugged terrain of Utah’s Wasatch Range, a stretch of mountains that had bedeviled Union Pacific since its earliest days. The eastbound ruling grade between Ogden and Evanston, climbing at 1.14 percent, demanded extraordinary pulling power. Union Pacific needed a locomotive capable of hauling heavy wartime freight tonnages — ammunition, armor, supplies — over Sherman Hill and the Wasatch grades without the delay and expense of helper locomotives. The railroad’s chief mechanical officer, Otto Jabelmann, and his engineering team accepted the challenge.
Jabelmann’s team began with the proven 4-6-6-4 Challenger design and methodically amplified every dimension. They enlarged the firebox to approximately 235 by 96 inches — roughly 155 square feet of grate area, large enough to park an automobile inside. They lengthened the boiler, added four more driving wheels to create two sets of eight, and slightly reduced driving wheel diameter from 69 to 68 inches to improve tractive effort. The result was the 4-8-8-4 wheel arrangement: a configuration used by no other locomotive in history before or since. The Big Boy was, by design, a one-of-a-kind type.
After all’s said and done, they’re quite an engine. Best mountain engine we ever had… when it comes right down to it, these s.o.b.’s are tough to beat on the hill — put a warm water in ‘em and they’ll go.
Legend has it that during construction at ALCO’s Schenectady plant, a worker chalked the words “Big Boy” on the smoke box of the first locomotive being assembled. The name stuck, immediately adopted by Union Pacific and the railfanning public alike. Twenty-five of these giants were built in two production batches — the first twenty numbered 4000 through 4019, and a second group of five numbered 4020 through 4024. All were delivered between 1941 and 1944, assigned exclusively to Union Pacific, and put to work on the demanding grades of the West.

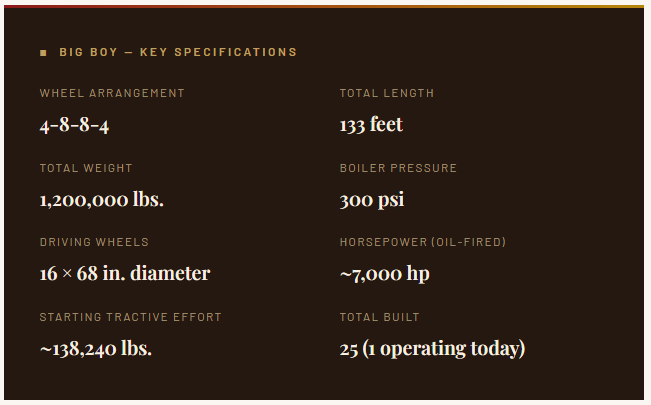

Big Boy — Key Specifications
Revenue Service
Titans of the Wasatch
The Big Boys entered service at the height of World War II, exactly when they were most needed. Union Pacific assigned them to the grueling Ogden–Green River corridor across the Wasatch Range, where they could haul trains of approximately 6,000 tons unassisted — an extraordinary figure for the era. In later years, as traffic patterns shifted, the Big Boys were reassigned eastward to Cheyenne, Wyoming, where they tackled Sherman Hill on the Wyoming Division between Cheyenne and Laramie.
Despite their immense size — 133 feet from pilot to tender and weighing 1.2 million pounds fully loaded — the Big Boys were articulated to navigate curves. Like the Mallet-type locomotives that preceded them, though without the compound steam arrangement of a true Mallet, the Big Boys featured a hinged frame: the forward set of eight drivers and their engine swiveled independently of the rear engine and boiler, allowing the locomotive to negotiate curves that would be impossible for a rigid frame of equivalent length. The four-wheel leading truck provided stability entering curves, while the four-wheel trailing truck supported the enormous firebox at the rear.
The Big Boys burned Wyoming coal — low-grade but abundant, sourced from mines that Union Pacific itself owned. Fuel consumption was prodigious. Historical accounts suggest the locomotives could consume roughly a ton of coal per mile under heavy working conditions, making fuel management a constant operational concern.
By the late 1950s, the diesel locomotive had conquered American railroading. Electro-Motive’s FT demonstrators had first toured the country in 1939, and the economics of diesel operation — lower fuel costs, reduced maintenance, no need for water stops — proved irresistible to railroad management nationwide. Union Pacific retired its last Big Boys between 1959 and 1962. No. 4014 made its final revenue run on July 21, 1959, and was donated to the Railway & Locomotive Historical Society in December 1961. It arrived at the RailGiants Train Museum at the Los Angeles County Fairgrounds in Pomona, California, on January 8, 1962, where it would stand silent for more than five decades.
On April 2, 1943, No. 4014 set a remarkable test record — pulling 65 freight cars between Ogden, Utah, and Evanston, Wyoming, generating a maximum of 5,530 horsepower. The locomotive would go on to travel 1,031,205 miles in revenue service before retirement.
Restoration
The Long Road Back to Life

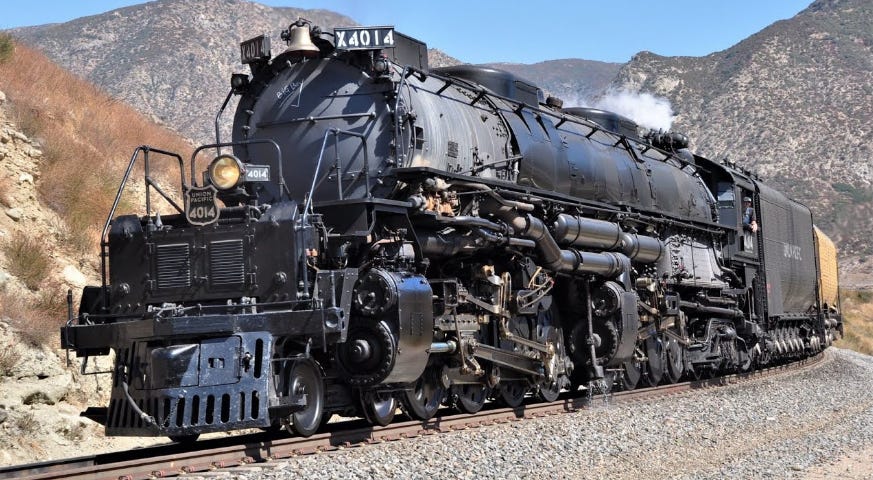

For fifty-two years, No. 4014 stood as a static monument at the RailGiants Train Museum, an artifact of an era when steam ruled the rails. In July 2013, Union Pacific announced it had reached an agreement with the Southern California Chapter of the Railway & Locomotive Historical Society to reacquire the locomotive. In January and April 2014, the massive engine was moved across California and transported by rail to Union Pacific’s steam shop in Cheyenne, Wyoming, where it would be rebuilt from the wheels up.
The restoration consumed years of painstaking labor. By early 2017, the locomotive had been completely disassembled. Worn components were repaired, or new rod brasses, boiler check valves, and lubricator check valves were fabricated. The sixteen driving wheels were shipped to the Strasburg Rail Road in Pennsylvania for crankpin and axle work and the fitting of new tires. The Steam Shop itself was expanded and upgraded to accommodate the Big Boy’s extraordinary dimensions. One estimate put the total cost of restoration at four million dollars or more.
The Oil Conversion
Making History Work in the Modern Age
The restoration team, working under Heritage Fleet Operations director Ed Dickens, made the consequential decision to convert No. 4014 to burn No. 5 fuel oil — the same heavy fuel oil that Union Pacific had successfully employed in its Challenger-class locomotives. The conversion required removing the original firebox grates entirely and replacing them with a fire pan and a purpose-built oil burner. Unlike the failed 1946 experiment on No. 4005, which used a single burner and produced uneven heating across the cavernous grate, the modern conversion employed burner technology specifically engineered for the Big Boy’s uniquely large firebox.
No. 5 fuel oil is a heavy, viscous petroleum product — sometimes called Bunker B — that must be heated before it can be pumped and atomized for combustion. In No. 4014’s oil system, the fuel is stored in the tender and fed under pressure to the burner in the firebox. The burner atomizes the oil into a fine mist, which ignites and produces the intense, even flame needed to generate steam at the rated boiler pressure of 300 pounds per square inch.
The oil-fired system offers several operational advantages over the original coal arrangement. It produces no ash or clinker to manage in the firebox, requires no manual firing with a shovel, and provides more precise control of combustion intensity. The system is also dramatically cleaner in terms of particulate emissions — an important consideration for a locomotive that regularly operates through populated areas.
On April 27, 2019, No. 4014 successfully lit its oil fire for the first time — the first Big Boy ever to burn oil successfully, and the first time a Big Boy had been fired at all in nearly sixty years. The boiler passed its hydrostatic test on February 6, 2019, and the locomotive made its first movement under its own power on the night of May 1, 2019. On May 9, 2019, No. 4014 double-headed with Union Pacific’s never-retired No. 844 through Ogden, Utah, commemorating the Transcontinental Railroad’s 150th anniversary at nearby Promontory Summit.
On April 27, 2019, No. 4014 successfully lit its oil fire — the first time a Big Boy had been fired at all in nearly sixty years. The Big Boy was alive again.
Fuel & Water
Tenders, Capacity, and Operational Range
Running the Big Boy across a continent is, above all, a logistics problem — a constant negotiation between the enormous appetites of the boiler and firebox and the finite carrying capacity of the equipment that follows. For No. 4014, those logistics revolve around two precious commodities: No. 5 fuel oil and water.
The large tender coupled directly behind No. 4014 is the primary locomotive tender, currently tender No. 25-C-311 — originally built for and assigned to Union Pacific Challenger No. 3985. This tender carries approximately 25,000 gallons of No. 5 fuel oil. It is an oil tender: its sole functional purpose is to fuel the locomotive’s firebox burner system. When No. 4014’s original tender, No. 25-C-116, completes its conversion from coal-carrying to oil-carrying by the Railroading Heritage of Midwest America in Silvis, Illinois, it will be reunited with the locomotive, and tender No. 25-C-311 will return to the retired No. 3985.

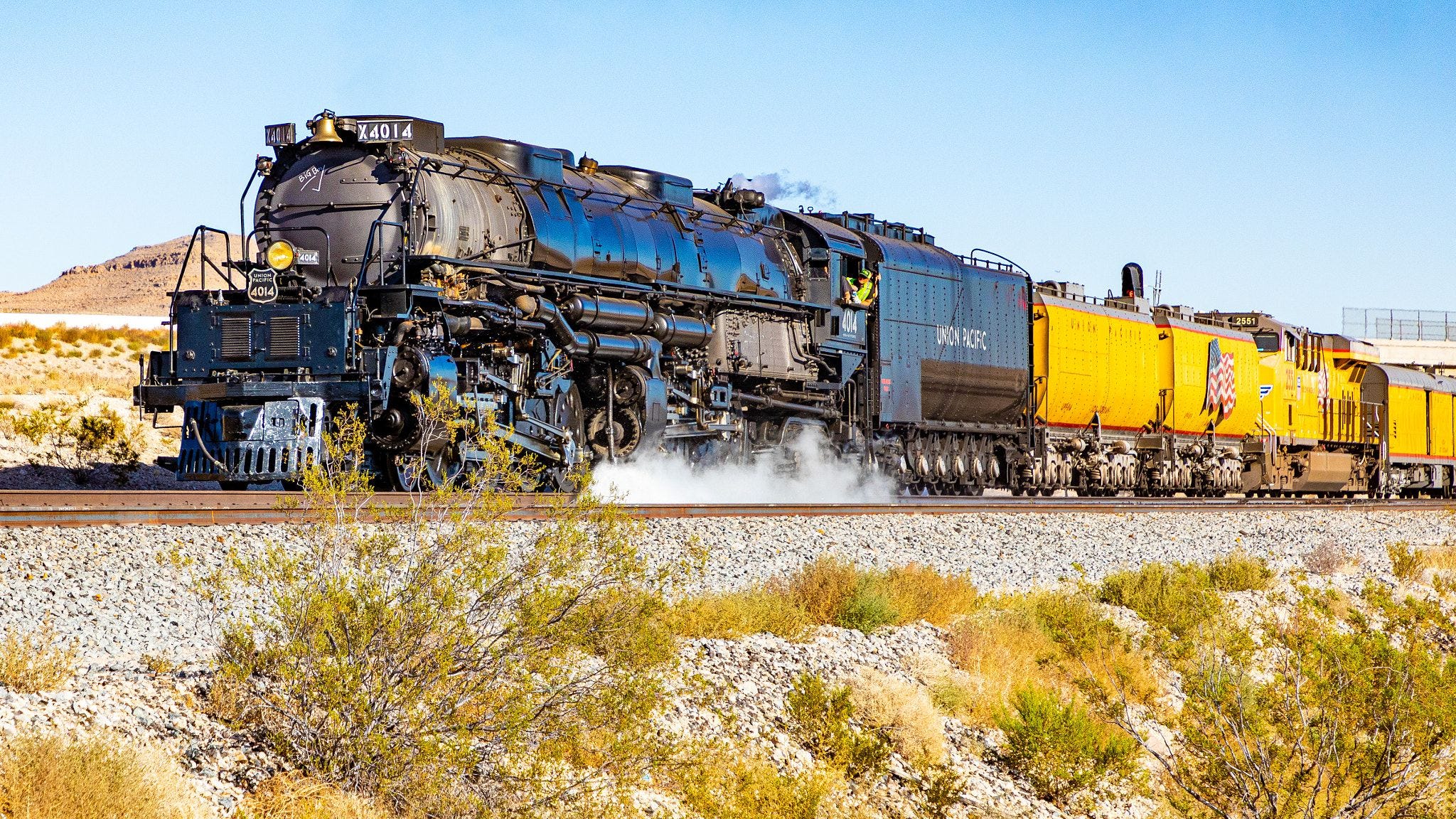

But the primary tender is only the beginning. On any extended excursion, No. 4014 operates with a carefully assembled support consist immediately behind the locomotive tender. The most operationally critical of these support vehicles are the auxiliary water tenders — specialized tank cars carrying additional water reserves to supplement the boiler’s needs. Two of these water tenders, named Jim Adams and Joe Jordan, are regular members of the support consist, stabled at Union Pacific’s Steam Shops in Cheyenne when not in service. They carry water only—supplementing, not replacing —the water supply in the primary tender.
Alongside the water tenders, the support consists of what amounts to a rolling machine shop: a car carrying machine tools, spare parts, and fabrication capabilities that allow the steam crew to address mechanical issues on the road. Crew dormitory and dining cars travel with the locomotive as well, providing accommodations for Union Pacific’s Heritage Fleet Operations team for the duration of each tour. Taken together, this rolling ecosystem — fuel, water, tools, and crew quarters — makes extended cross-country operations possible.

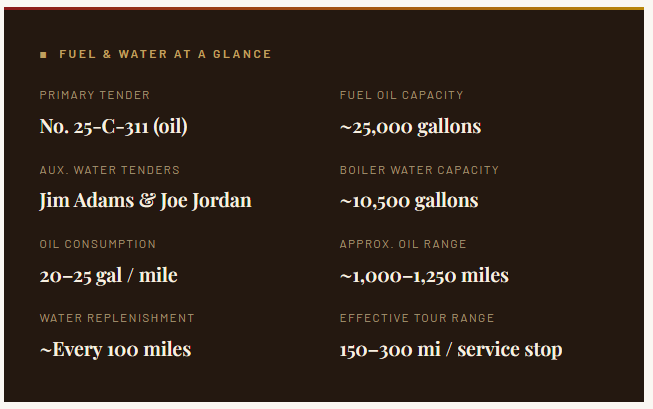

Fuel & Water at a Glance
As Trains Magazine flatly observes, No. 4014’s fuel economy is measured in gallons per mile, not miles per gallon. Under operating conditions, No. 4014 consumes between 20 and 25 gallons of No. 5 fuel oil for every mile traveled, with the actual rate depending on grade, speed, and load. At 25 gallons per mile, a full 25,000-gallon tender load provides a theoretical range of approximately 1,000 miles — though in practice, refueling occurs more frequently to maintain operational margins.
Water is, in many respects, the greater logistical challenge. A steam locomotive does not recycle its water: steam is generated in the boiler, passes through the cylinders, and is exhausted into the atmosphere. Every pound of steam that drives the pistons is lost water. The boiler itself holds approximately 10,500 gallons — enough to fill a swimming pool roughly 14 feet wide, 28 feet long, and 3½ feet deep. Under working conditions, that supply is exhausted in approximately 100 miles, requiring either a water stop or transfer from the auxiliary water tenders in the support consist. Water quality is also a significant concern: dissolved minerals can deposit scale on boiler surfaces, making treated water an operational necessity rather than a luxury.
In practical terms, combining the primary tender’s capacities with the supplemental water tenders allows No. 4014 to operate tour segments of 150 to 300 miles between major service stops, depending on terrain. On the Nebraska plains, longer runs between service stops are feasible; on mountain grades, more frequent replenishment is required. The 2026 coast-to-coast tour’s support infrastructure is planned accordingly, with fuel pre-positioned and water arranged at each overnight stop along the entire route.
Continues in Part Two 📕
