King of the Rails - Part Two

King of the Rails: The Birth, Revenue Career, and Resurrection of Union Pacific Big Boy No. 4014

May 13, 2026

No. 4014 produces roughly 7,000 horsepower — the equivalent of one and a half modern mainline diesels in a single machine. But diesel-electric technology has a decisive advantage in raw pulling force. Understanding the gap and why it exists is essential to appreciating both what the Big Boy achieved and what ended the steam era for good.

Words 2,161 | Read Time 10 min | Enjoy

Part One - here.

Engineering Analysis

The Big Boy vs. Today’s Diesels

Among the most revealing ways to appreciate the Big Boy’s engineering is to set its performance figures alongside those of the modern diesel-electric locomotives that replaced steam on America’s mainlines — and still dominate them today. The comparison is more nuanced than a simple head-to-head, because steam and diesel power are fundamentally different systems that deliver their muscle in fundamentally different ways. Understanding those differences is essential to judging how the Big Boy truly stacks up.

Horsepower: The Oil Conversion Advantage

In its original coal-fired configuration, the Big Boy was rated at approximately 6,290 horsepower — a figure representing peak output under ideal conditions, calculated at a speed of around 41 mph. Below that speed, more of the available energy went into pure tractive pull; above it, available power tapered. The oil conversion performed during the 2014–2019 restoration changed that equation. The more efficient and controllable combustion of No. 5 fuel oil, combined with the cylinder bore enlarged from 23¾ to 24 inches, pushed the restored No. 4014’s output to an estimated 7,000 horsepower — roughly an 11 percent improvement over the original coal-fired rating.

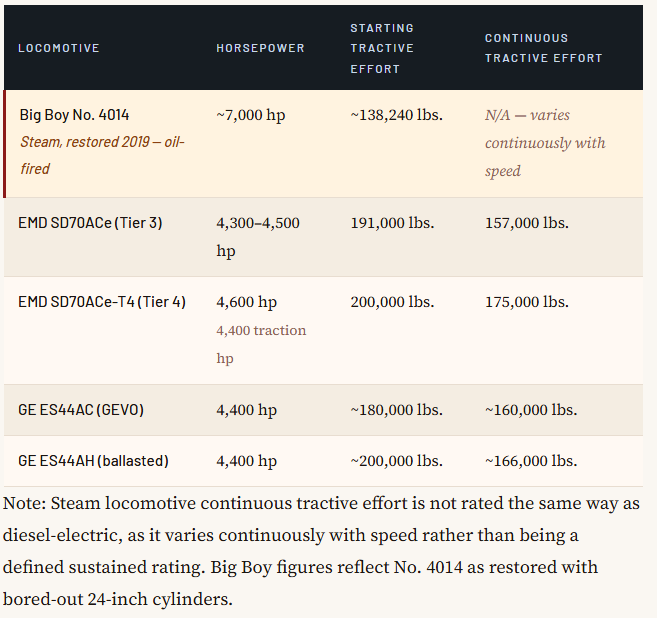

For context, the workhorse of today’s Union Pacific mainline — the EMD SD70ACe — is rated at 4,300 to 4,500 horsepower depending on configuration. The GE ES44AC (Evolution Series) delivers 4,400 horsepower. Even the most advanced current-production diesel, the EMD SD70ACe-T4, meeting EPA Tier 4 emissions standards, produces a rated 4,600 horsepower, with only 4,400 available for traction. A single Big Boy, in other words, produces the equivalent horsepower of roughly one and a half to two modern mainline diesels.

Tractive Effort: Where Diesel Holds the Advantage

The picture shifts when examining starting tractive effort — the sheer pulling force available from a standing start, which determines how heavy a train a locomotive can get moving. Here, modern diesel-electric technology holds a decisive edge, and the reason is instructive.

The Big Boy’s starting tractive effort was calculated at 135,375 pounds in its original specification. With the cylinder enlargement performed during the 2019 restoration, that figure rose to approximately 138,240 pounds on No. 4014. This was the maximum force available at speeds below approximately 10–12 mph, where the pistons develop their greatest mechanical advantage. Peak power was delivered around 35 mph — the fundamental characteristic of steam: high torque at low speed, building to maximum horsepower at a moderate working speed, then declining as speed continues to increase.

The EMD SD70ACe delivers a starting tractive effort of 191,000 pounds — roughly 38 percent more than the Big Boy at the moment of starting. The SD70ACe-T4 achieves 200,000 pounds starting tractive effort, and the ballasted GE ES44AH used by CSX reaches approximately the same figure.

The reason for this gap lies in the fundamental difference between the two technologies. A diesel-electric locomotive uses its diesel engine to drive electric generators, which power AC traction motors mounted directly on the axles. Those motors can deliver maximum torque from zero RPM — from the very moment the wheels begin to turn. Sophisticated wheel-slip control computers monitor adhesion on all six axles simultaneously, modulating power in milliseconds to keep wheels at the edge of adhesion without slipping. Steam power works through a mechanical crank-and-rod system. There is no electronic adhesion management; the engineer and fireman manage wheel slip through throttle and sand application alone.

A single Big Boy produces the equivalent horsepower of roughly one and a half to two modern mainline diesels. And yet the diesel era came for it anyway — not because it was outgunned, but because it could not be multiplied.

The Multiplier Factor

Modern railroads solve the power problem through multiplication. A typical Union Pacific manifest freight might be powered by three to four SD70ACe units lashed together, delivering a combined 13,000–18,000 horsepower and a combined starting tractive effort of 575,000–800,000 pounds — dwarfing even the most powerful steam locomotive ever built. This scalability is one of the diesel-electric’s most decisive operational advantages.

The Big Boy could not be multiplied in the same way. While Big Boys occasionally operated in double-headed pairs on the heaviest trains, each locomotive required its own full crew, its own water stops, its own fire management. The operating economics of running two 600-ton steam locomotives versus three 420,000-pound diesel units quickly favored the latter. By the late 1950s, the math was irrefutable.

What the comparison ultimately reveals is not that the Big Boy was inferior — it was, by every measure of its era, a supreme achievement — but that it operated at the practical ceiling of what reciprocating steam technology could achieve. The diesel-electric moved that ceiling dramatically higher. The fact that the Big Boy, at 7,000 horsepower, still significantly outpowers a single modern diesel unit is, in retrospect, one of the most extraordinary tributes to what Otto Jabelmann and ALCO accomplished in Schenectady in 1941.

The Big Boys were designed with a factor of adhesion of 4.0 — meaning the locomotive weighed four times what it could pull without slipping. This constraint was embedded in the mechanical nature of steam itself. This meant its adhesive weight on the drivers (about 540,000–545,000 lbs) was four times its maximum starting tractive effort (135,375 lbf). It achieved the maximum practical tractive effort without exceeding axle-load limits while operating at the edge of reliable adhesion. Modern diesel-electric AC traction achieves an adhesion coefficient of approximately 0.42 on dry rail without sanding, compared to roughly 0.25 for an unassisted steam locomotive (this is a major improvement over traditional steam).

Eastward for the First Time in 85 Years

In 2026, Union Pacific’s Big Boy No. 4014 is embarking on its most ambitious journey since it first rolled out of ALCO’s Schenectady plant 85 years ago: a true coast-to-coast tour celebrating the 250th anniversary of the United States. The tour represents not only a remarkable logistical undertaking but a historic first — No. 4014 will operate east of Chicago for the first time since its original delivery run from Schenectady in 1941.

The western leg launched on April 10, 2026, from downtown Sacramento near historic Milepost 0 — the site where the Central Pacific Railroad began construction on the transcontinental railroad in 1863. The locomotive traveled to Ogden, Utah, drawing massive crowds at display events on April 18–19, before returning to Cheyenne on April 24. Tens of thousands of spectators turned out along the route, reinforcing what Union Pacific has known for years: the Big Boy is, as one railroad spokesman memorably put it, “the Elvis Presley of locomotives.”

The eastern leg departs Cheyenne on May 25, 2026, and represents a landmark collaboration between Union Pacific and Norfolk Southern. The eastern portion of the route runs on the Norfolk Southern network, bringing No. 4014 to regions with deep ties to the nation’s industrial and railroad heritage but no prior connection to the Big Boy. Indiana, Ohio, New York, and Pennsylvania will each host the locomotive's first-ever visit.

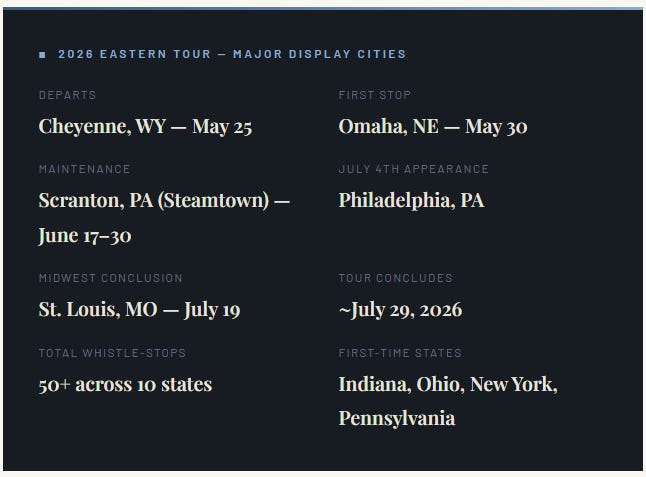

2026 Eastern Tour — Major Display Cities

Indiana, Ohio, New York, Pennsylvania

The tour’s centerpiece on the East Coast is the July 4th appearance in Philadelphia — a city whose own history is synonymous with the birth of the American republic, and an appropriately symbolic destination for a locomotive built in wartime and now celebrating the nation’s 250th year. A maintenance stop at Steamtown National Historic Site in Scranton, Pennsylvania, from June 17 through June 30, offers visitors with park admission the chance to view No. 4014 up close. Ticketed excursion rides through the Poconos Mountains on June 14 provide a rare opportunity to ride behind the Big Boy in motion — the first time this locomotive has ever hauled passengers east of the Mississippi.

On the eastern leg of the trip, No. 4014 will be accompanied by Norfolk Southern commemorative locomotives and heritage passenger cars from Norfolk Southern’s Heritage Fleet, in addition to Union Pacific’s own support consist. For communities along the Norfolk Southern corridor — communities that grew up around the factories, steel mills, and coal mines that once sustained the industrial heartland — the passage of No. 4014 is not merely a railfan spectacle. It is a reminder of the industrial history they share with the locomotive that was born in Schenectady and hauled the freight of war across the American West.

This is the first time Big Boy has steamed across the Mississippi River and into the Ohio Valley since it was built in Schenectady and delivered to Union Pacific in 1941. For rail enthusiasts and casual onlookers alike, it represents a once-in-a-lifetime event: the world’s largest operating steam locomotive traversing the industrial corridors of the American East for the first and, quite possibly, the only time in its operational life.

A Living Monument

Of the twenty-five Big Boys built, eight survive. Seven stand as static monuments in museums across the country — in St. Louis, Dallas, Omaha, Denver, Scranton, Green Bay, and Cheyenne. Only one moves. Only one breathes fire. Only one fills a valley with the thunder of sixteen driving wheels and the voice of a Hancock long-bell three-chime whistle. That one is No. 4014.

There is something irreducible about what the Big Boy represents, something that transcends the impressive statistics of its boiler pressure and tractive effort. It is a machine that was built in one existential crisis, restored in another moment of national reflection, and is now completing its most ambitious journey in celebration of the nation’s 250th year. It does not run on nostalgia. It runs on No. 5 fuel oil, carefully atomized in a firebox the size of a small room, converted to steam at 300 pounds per square inch, and translated by sixteen driving wheels into motion that you can feel in your chest from a quarter mile away.

The Big Boy is not a relic. It is a reminder. 📕
